RX-LFP48100 | 19" Rack Mounted 3U Battery Module | UL1973 Certified | UL9540 Pending

by Ruixu

40,000+ Happy Customers!

We Beat All Competitors Prices.

Includes Lifetime Customer Support!

Fast & Reliable Shipping - While Supplies Last.

Current price $1,799.00
Original price $2,249.00
Translation missing: en.product_price.item.price.range_html
Original price $2,249.00
from $1,799.00
Current price $1,799.00
You Saved: $450.00 20%

Support Agent

Have a question? We're here to help.

Friendly Phone Support:  877-242-2792

Mon-Fri 10am-6pm EST

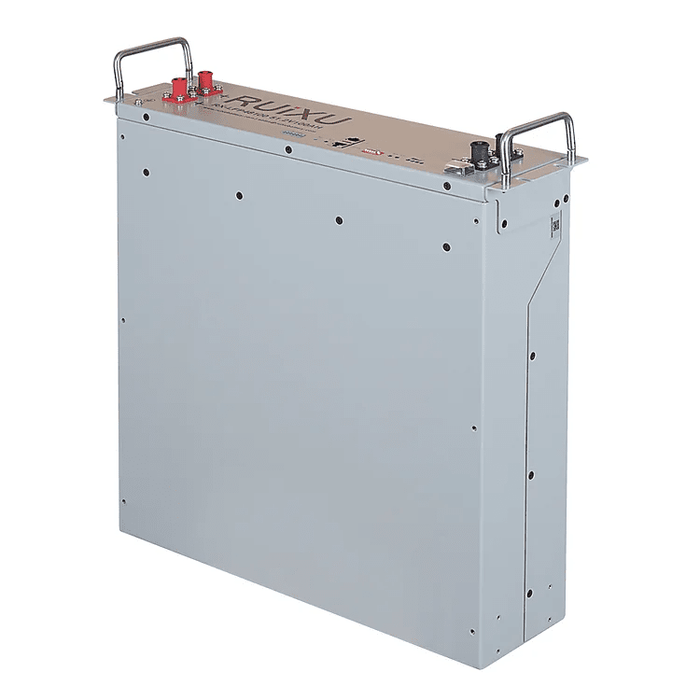

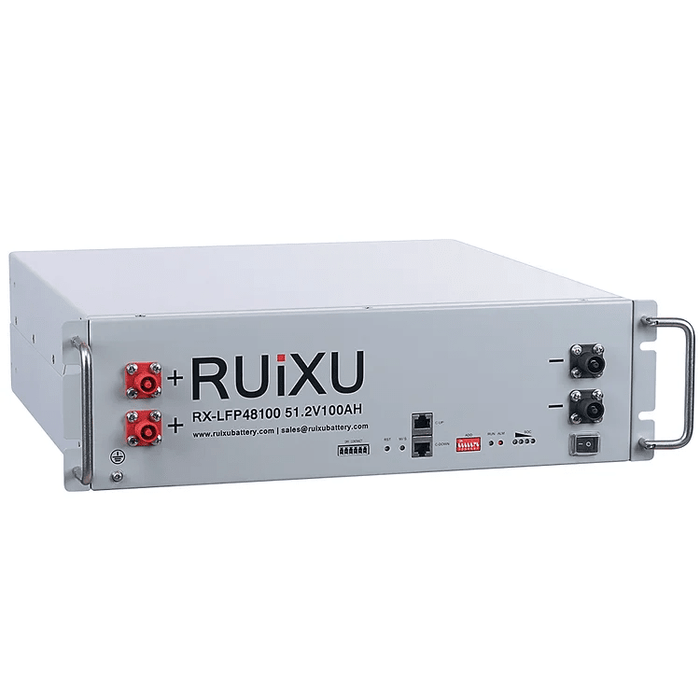

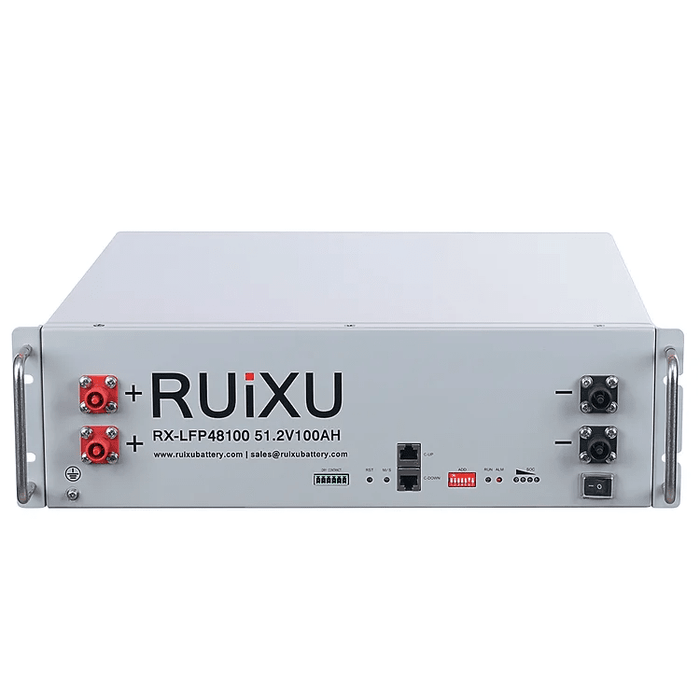

RUIXU 51.2V100A 5120Wh | 19" Rack Mounted 3U Module

RUiXU Server Rack battery packs are rack type residential lithium batteries,designed entirely for residential ESS applications,with our battery technology ,you can easily combine it with a mainstream inverter in different scenarios to save your electrical bill & back up your power during grid outage or unavailable

What's Included With Your Server Rack battery Order?

  • 1 x RUiXU 48V Server Rack battery (RX-LFP48100)
  • 1 x RS485 Communication Cable
  • 1 x Ground Cable
  • 1 x Set of Parallel 4AWG Cables per battery
  • Lifetime Customer Support (Email, Live Chat & Phone)

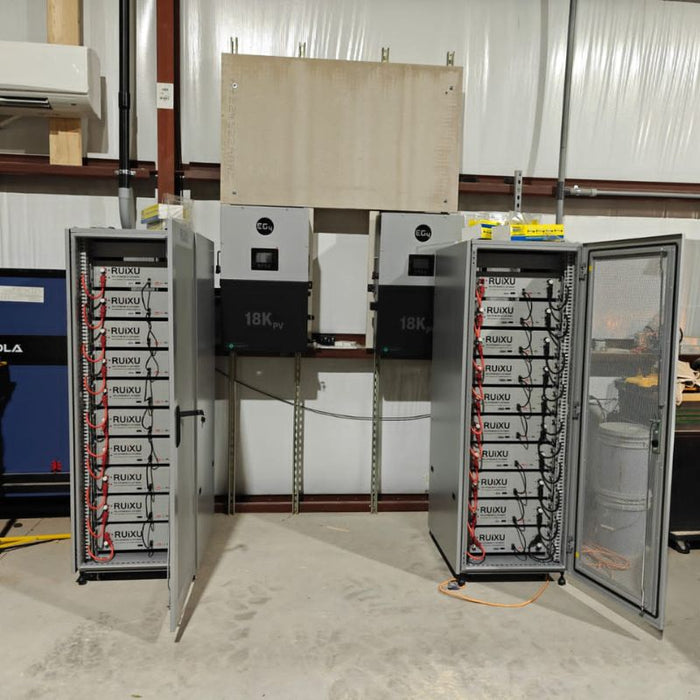

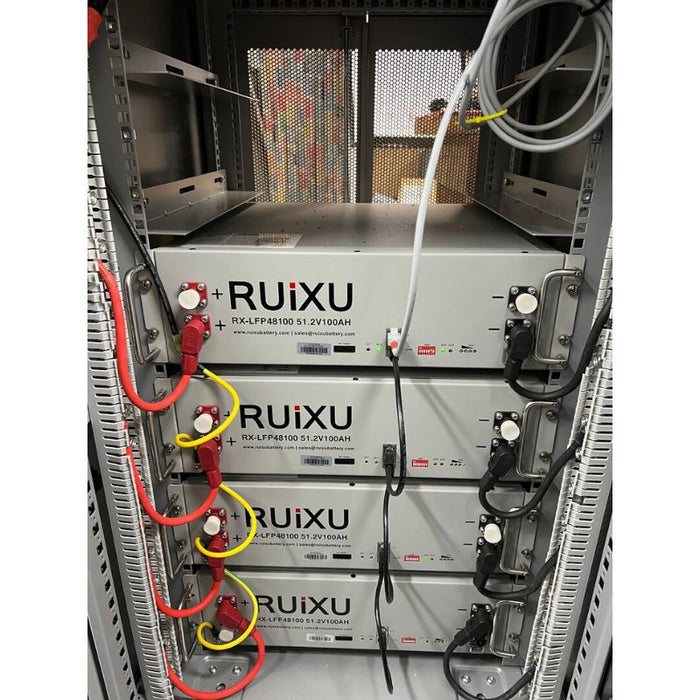

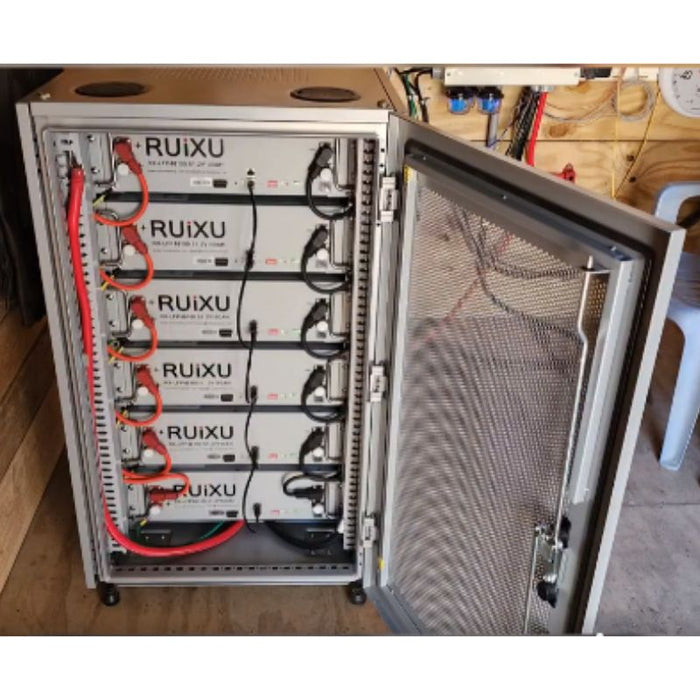

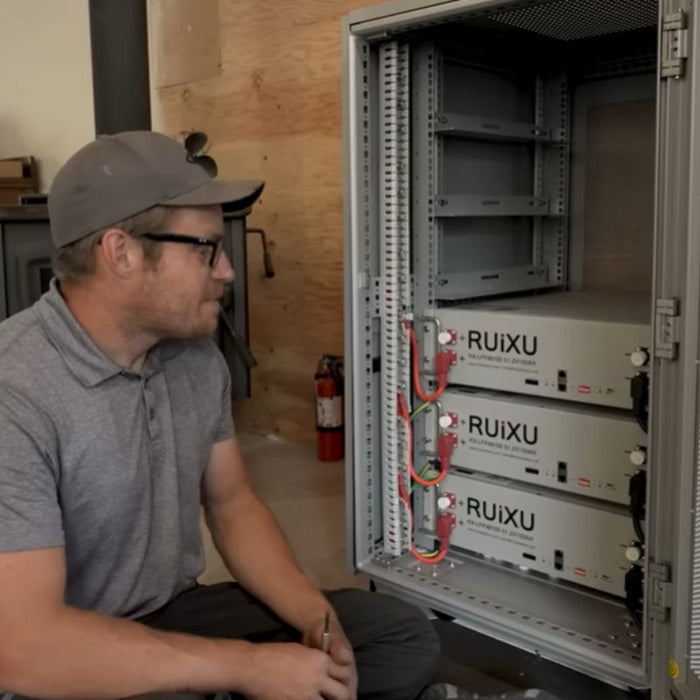

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller

4 types of installation

Optional bracket kits for different installation senarios

3U Model

Server Rack battery has 3U (133mm) standard height design

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing


CE/IEC62619 / UL1973 / UN38.3

Server Rack battery Specifications

  • Nominal voltage: 51.2V
  • Nominal capacity: 100Ah
  • Nominal energy: 5.12kWh
  • Usable energy: 4.92kWh
  • Operating voltage range:  44.8V-56.0V
  • Charge voltage: 56V
  • Float voltage: 54.6V
  • Recommended charge current: 50A
  • Max. charge current: 70A
  • Recommended discharge current: 50A
  • Max. discharge current: 100A
  • Communication: RS485/CAN
  • Peak discharge current: 101-119A@5mins | 120-149A@15S
  • IP rating: IP20
  • Cycle life: >6000 cycles @90%DOD
  • Net weight: ~47kg (103.6lb)
  • Dimension(W*H*D): 482*133.5*460mm (18.9 5.2*18.1 inch)
  • Cell type: Lithium-iron phosphate (LiFePO4)
  • Design life: 15 years
  • Operation temperature: -10-50 C (14-122°F)
  • Storage temperature: -10-45°C (14-113°F)
  • Relative humidity: 5%-90%, No condensation
  • Install altitude: <4000m
  • Install location: Indoor
  • Installation: Wall mounted/Floor mounted/ Stack/ Rack mounted
  • CertificationCE/IEC62619/UL1973 / UN38.3

Note: Assembly of rack is required
